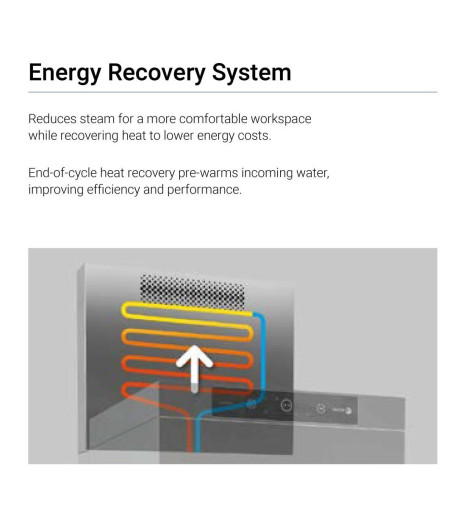

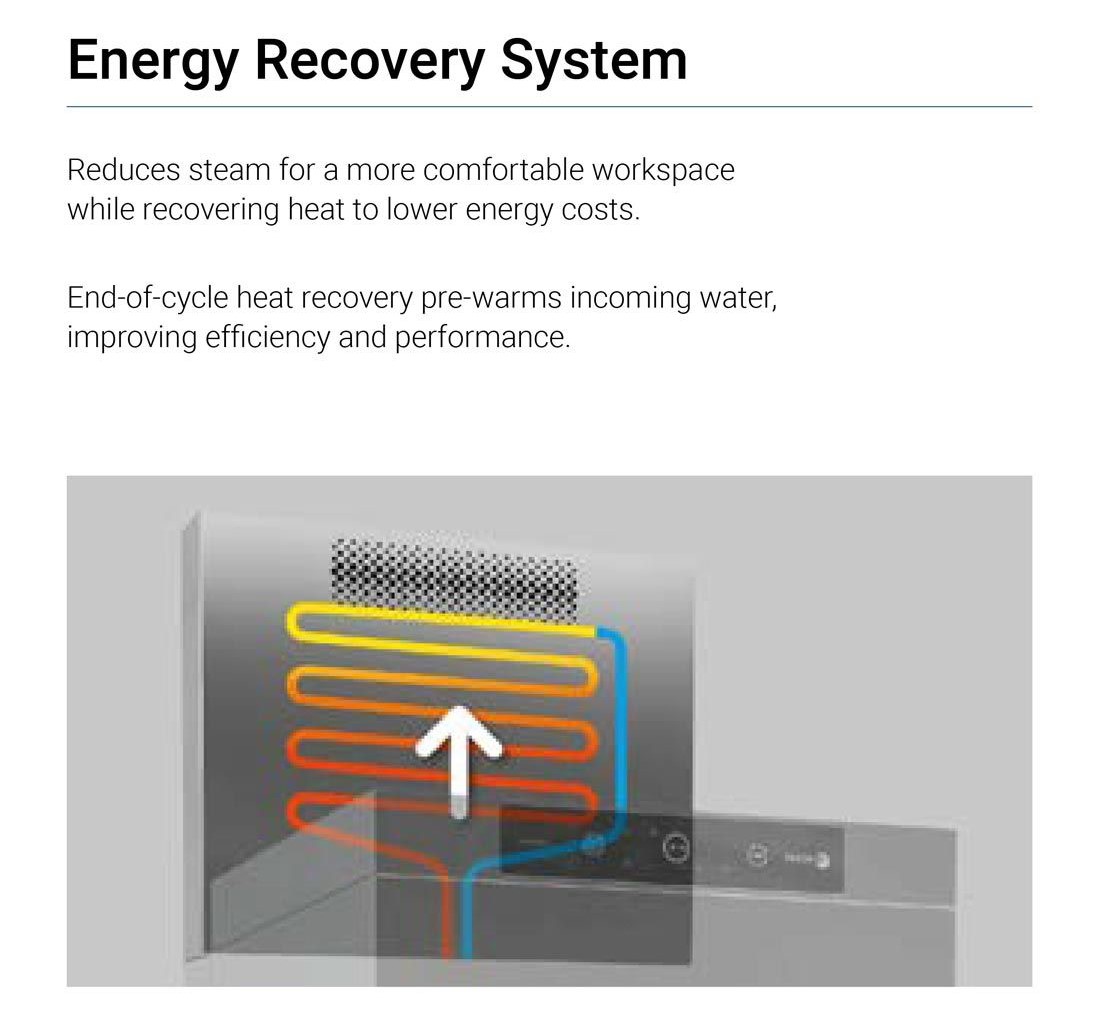

The Fagor iNova Heated Recovery Pass-Through Dishwasher – WHC-502TRCBD features advanced Heat Recovery technology designed to capture and reuse hot steam generated during the wash cycle. This system helps reduce energy consumption, lowers operating costs, and minimises steam released into the kitchen, creating a more comfortable working environment.
Heat Recovery also improves rinse water efficiency by preheating incoming cold water, helping deliver faster and more consistent washing performance.
- Brand Name – Fagor
- Dimensions – 630 x 750 1975mm
- Manufacturer – Fagor
-

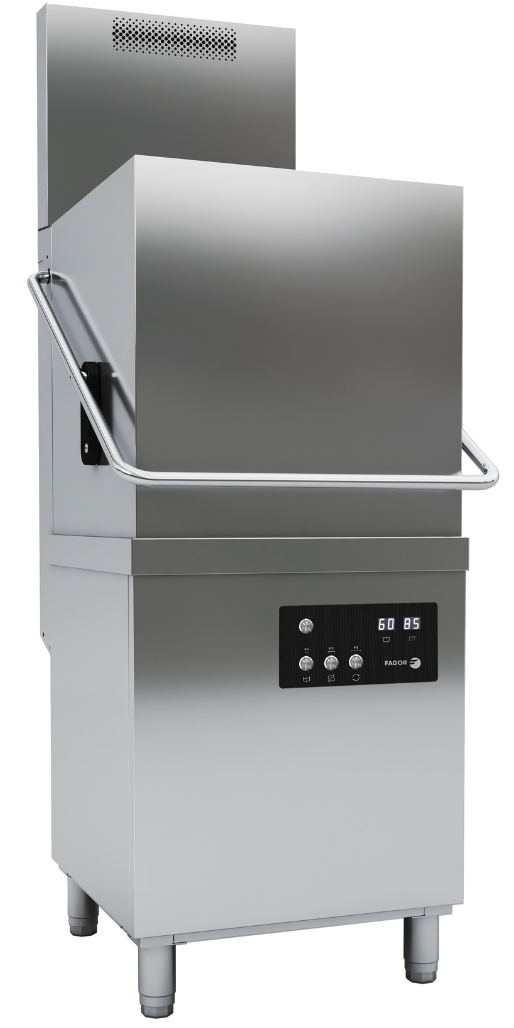

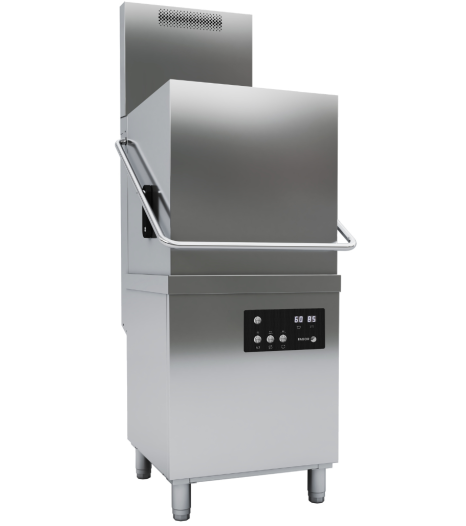

Fagor iNova Heated Recovery Pass-Through Dishwasher
Hood-type dishwasher concept range with a heat recovery system for a 500x500 basket with mains pressure, LED displays, drain pump and detergent dispenser
- Energy Efficiency: Reuses waste heat to preheat incoming water, reducing energy use.
- Lower Operating Costs: Cuts down on energy bills through efficient heat recovery.
- Improved Working Environment: Minimises hot steam release, keeping the kitchen cooler and more comfortable.
- No Need for Direct Exhaust Ventilation: Eliminates the requirement for an external exhaust hood, saving on installation costs.
- Hourly production: 40 baskets/ hour
- Clearance (max ware height): 450mm
- Electronic control
- Wash cycles: 55”/75”/120
- Double rotating wash and rinse systems, made of AISI-304 stainless steel
- Wash pump, 750W each
- Drain pump: 100W drainage cycle
- Tank with 3 kW heating power
- Tank capacity: 33 litres
- Water consumption: 2.2 litres/cycle
- Thermostatic temperature control: washing at 60℃ and rinsing at 85℃
- Two-digit LED displays
- Hydraulic rinse aid dispenser
- Dual-flow wash pump with soft-start
- Double-stage filtration system
- Dual-flow wash pumps
- A magnetic micro switch to stop the cycle in case of accidental opening of the hood
- Adjustable legs
- Supplied with 1 dish basket, 1 glass basket and 1 cutlery container
- Watermark approved
- Can be converted to single-phase
- Precision of working temperatures
- Temperature control by electronic probes
- Configurable control
- i-ERROR DIAGNOSIS: Error identification on screen
- Includes inbuilt Drain pump
- 2 Years Parts and Labour Warranty
